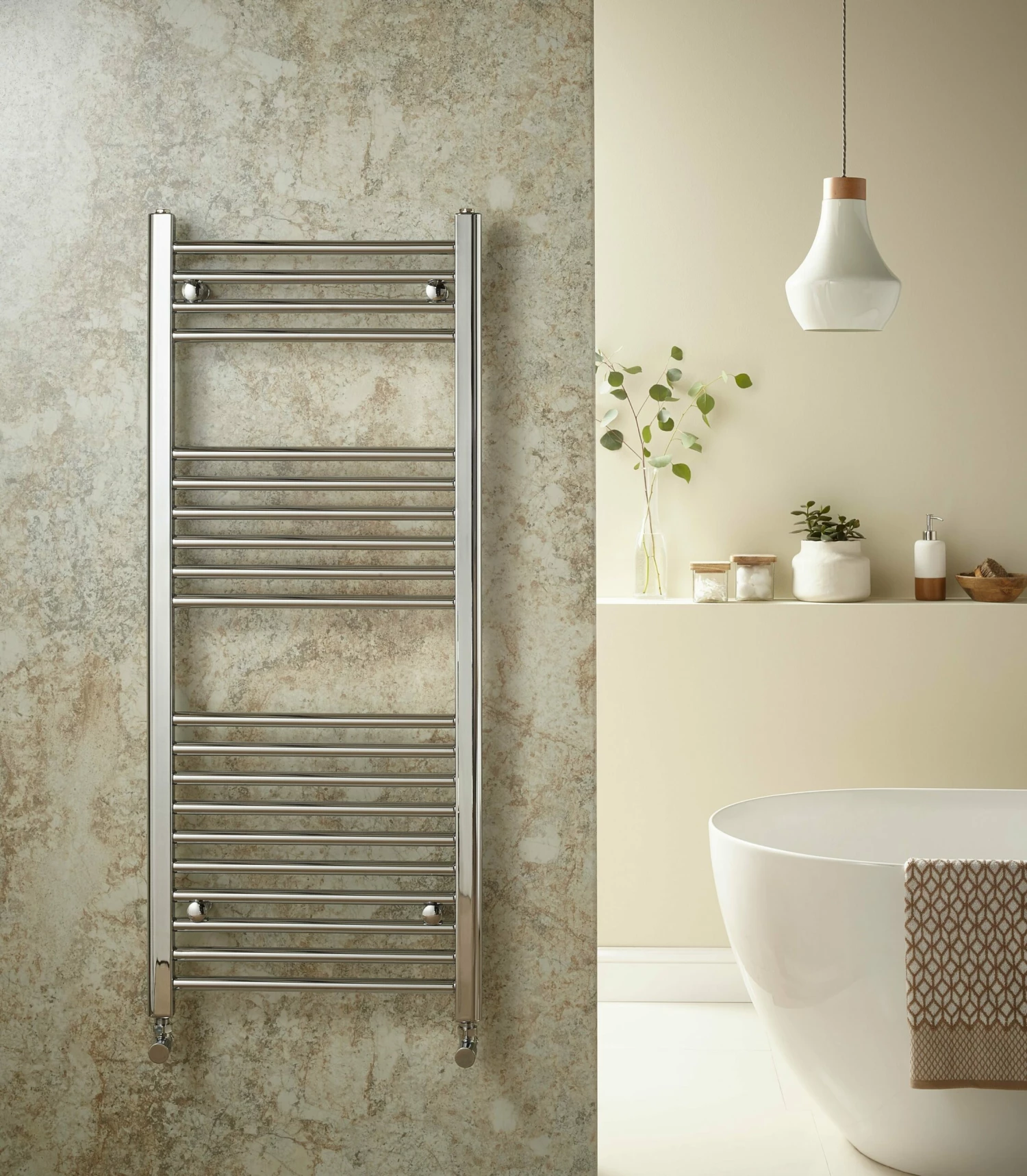

The Elan Straight is designed with both style and functionality in mind, from the trusted brand Redroom that will make a striking focal point in your modern bathroom. The rail’s impressive heat output means it can even help to keep your bathroom at a steady, cosy temperature. This radiator offers a 5-year guarantee, made from high-quality material and engineering.
All Redroom radiators have the CE mark, having been independently tested in accredited laboratories to EN442 in accordance with CE requirements. This means the published heat output figures are fully in line with the testing criteria. You can therefore specify the size of your radiator with the assurance that your choice will perform as stated, making Redroom radiators the obvious choice.
Suitable for dual-energy installations, see DEpack immersion heaters for pricing.

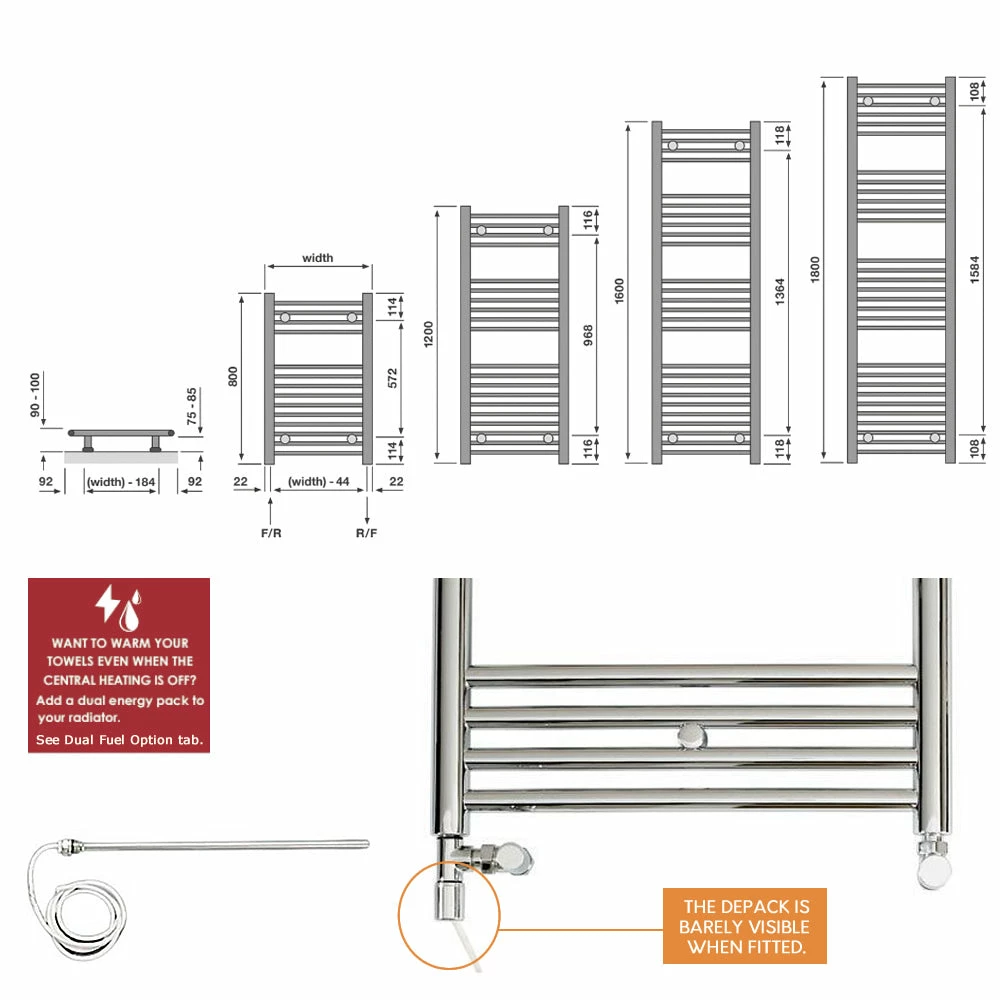

Sizes available:
Height: 600mm Width: 400mm – Watts ΔT50: 151
Dual Energy (Optional): 100W BTU ΔT50: 515
Height: 600mm Width: 800mm – Watts ΔT50: 280
Dual Energy (Optional): 100W BTU ΔT50: 955
Height: 600mm Width: 1000mm – Watts ΔT50: 345
Dual Energy (Optional): 100W BTU ΔT50: 1177
Height: 800mm Width: 400mm – Watts ΔT50: 177
Dual Energy (Optional): 100W BTU ΔT50: 604
Height: 800mm Width: 500mm – Watts ΔT50: 218
Dual Energy (Optional): 150W BTU ΔT50: 744
Height: 800mm Width: 600mm – Watts ΔT50: 258
Dual Energy (Optional): 150W BTU ΔT50: 880
Height: 1000mm Width: 500mm – Watts ΔT50: 287
Dual Energy (Optional): 150W BTU ΔT50: 979
Height: 1200mm Width: 400mm – Watts ΔT50: 260
Dual Energy (Optional): 200W BTU ΔT50: 887
Height: 1200mm Width: 500mm – Watts ΔT50: 315
Dual Energy (Optional): 200W BTU ΔT50: 1075
Height: 1200mm Width: 600mm – Watts ΔT50: 370
Dual Energy (Optional): 300W BTU ΔT50: 1262
Height: 1600mm Width: 300mm – Watts ΔT50: 300
Dual Energy (Optional): 200W BTU ΔT50: 1024
Height: 1600mm Width: 500mm – Watts ΔT50: 427
Dual Energy (Optional): 300W BTU ΔT50: 1457
Height: 1600mm Width: 600mm – Watts ΔT50: 506
Dual Energy (Optional): 300W BTU ΔT50: 1726
Height: 1800mm Width: 300mm – Watts ΔT50: 320
Dual Energy (Optional): 200W BTU ΔT50: 1092
Height: 1800mm Width: 500mm – Watts ΔT50: 484
Dual Energy (Optional): 300W BTU ΔT50: 1651
Height: 1800mm Width: 600mm – Watts ΔT50: 574
Dual Energy (Optional): 400W BTU ΔT50: 1958
Height: 1800mm Width: 750mm – Watts ΔT50: 741
Dual Energy (Optional): 400W BTU ΔT50: 2527
Also available in White and a curved model.
Pipe centres from wall: 75 – 85mm
Pipe Centres:
400mm Wide: 356mm
500mm Wide: 456mm
600mm Wide: 556mm
Finish: Chrome.
Please note – Radiator valves are not included.
