Jackoboard J-Drain Linear Wet Room Shower Floor Drain Channel - 700mm

Jackoboard J-Drain Linear Wet Room Shower Floor Drain Channel - 700mm - Image 2

Jackoboard J-Drain Linear Wet Room Shower Floor Drain Channel - 700mm - Image 3

Jackoboard J-Drain Linear Wet Room Shower Floor Drain Channel - 700mm - Image 4

Jackoboard J-Drain Linear Wet Room Shower Floor Drain Channel - 700mm - Image 5

Jackoboard J-Drain Linear Wet Room Shower Floor Drain Channel - 700mm - Image 6

Jackoboard J-Drain Linear Wet Room Shower Floor Drain Channel – 700mm

Original price was: £250.00.Current price is: £99.99.

SKU: D2V0C 1703035347 Categories: J Drain Linear Channel, Wet Room Trays & Kits, Wet Rooms Tags: Jackoboard J Drain, Related_jackoboard-plano-insulated-construction-tile-backer-board, Related_jackoboard-wet-room-waterproofing-tanking-sealing-kit, Related_jackoboard®-wedgeboard-sloping-tile-backer-board, Related_roman-haven-wetroom-shower-screen-panel-all-sizes-various-finishs, Wet Room Drains, Wet Room Kits & Trays. Wet Room Kits & Trays: Linear Wet Room Shower Floor Drain Channels

The quality you expect, the service you deserve.
Friendly, efficient service, always online.
Green products, guaranteed.
Your questions, our prompt answers.

Length: 700mm* (Total length: 760mm)

Depth: 56mm

Width: 62mm* (Total width: 115mm)

The J-Drain from Jackoboard is a clever and innovative linear wet room shower drain, that is designed to be fitted into the floor creating a level, walk in shower area, whilst being of a minimalist, unobtrusive design.

The J-Drain can be located anywhere in the floor (subject to underfloor obstructions), however, it is particularly suited to installation almost right up against the wall, thanks to its design.
With an installation depth of only 55mm, the J-Drain is suitable for new builds and renovation projects.

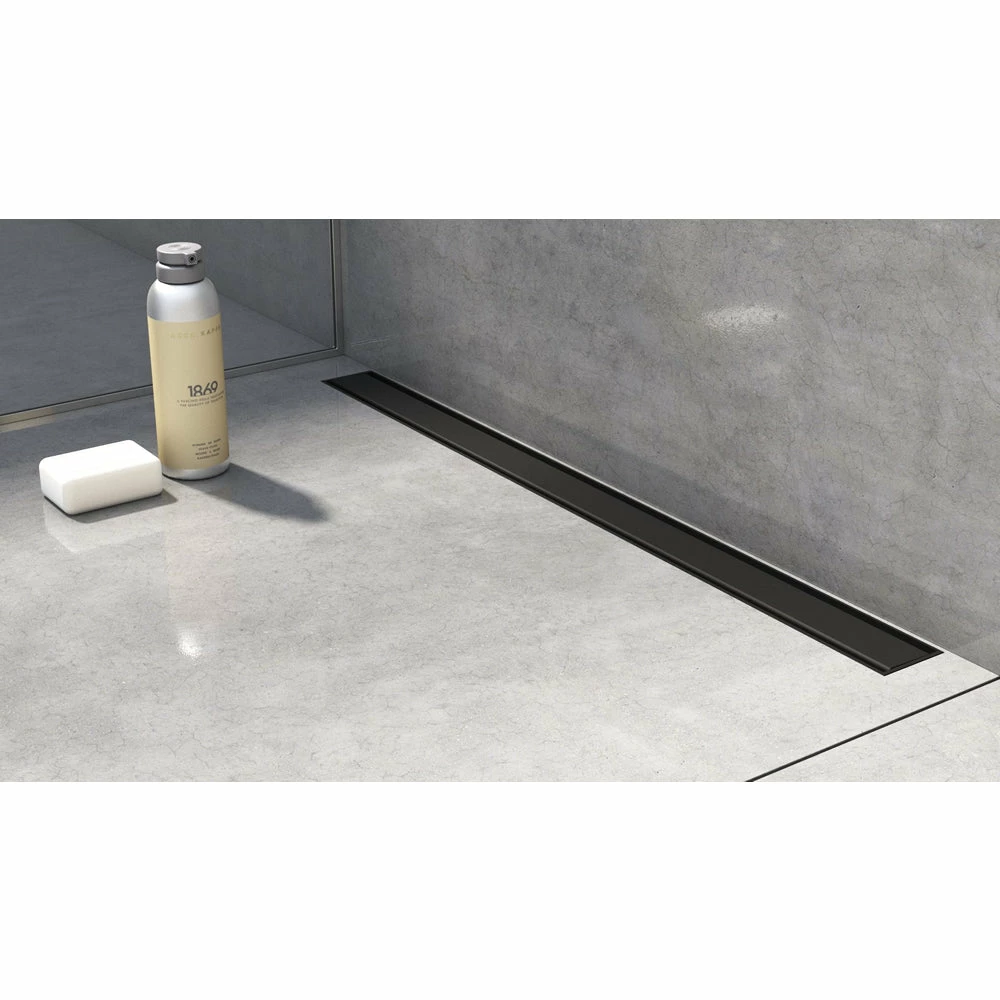

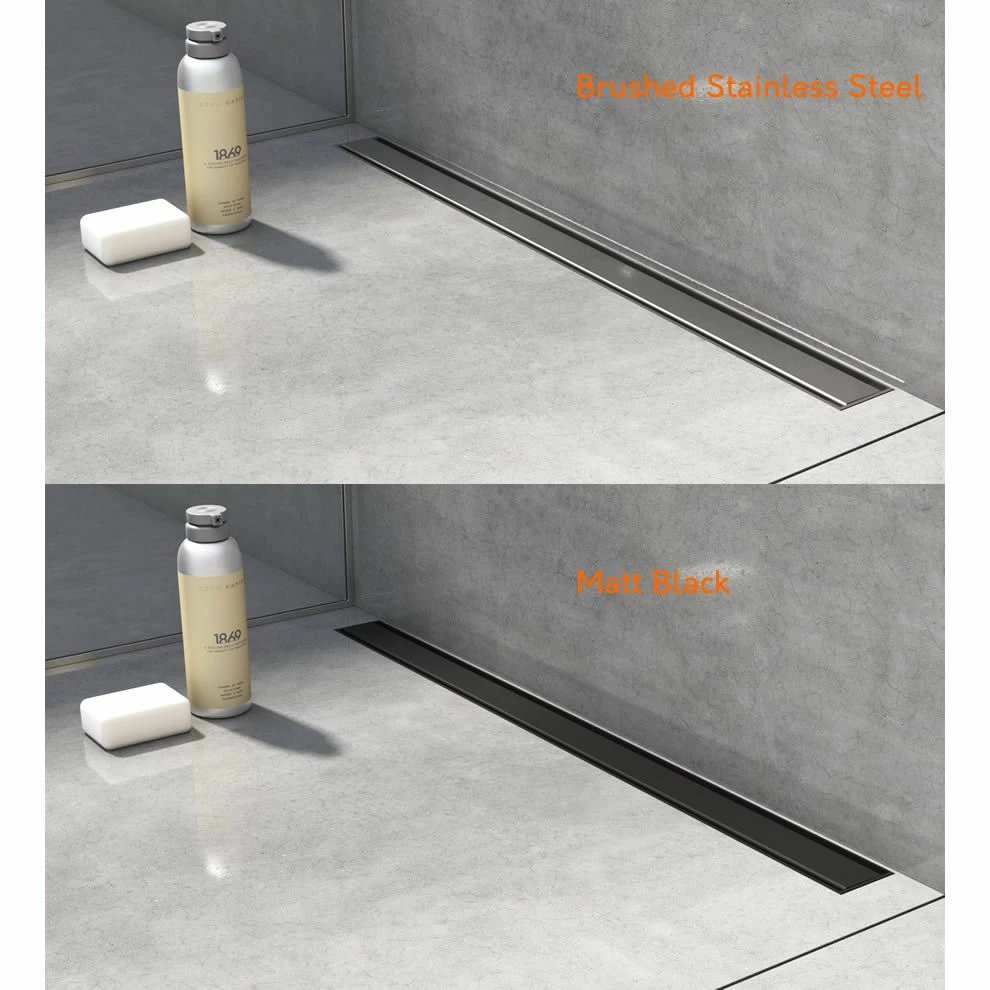

The cover grate is manufactured from stainless steel and is adjustable to accommodate a wide range of tile heights. Simply reverse the grate to tile the grate to match the remainder of the floor. The grate is easily removed to provide quick access to the drain body for the easy removal of debris and hair. An optional Matte Black (non reversible / non tileable) drain channel is also available.

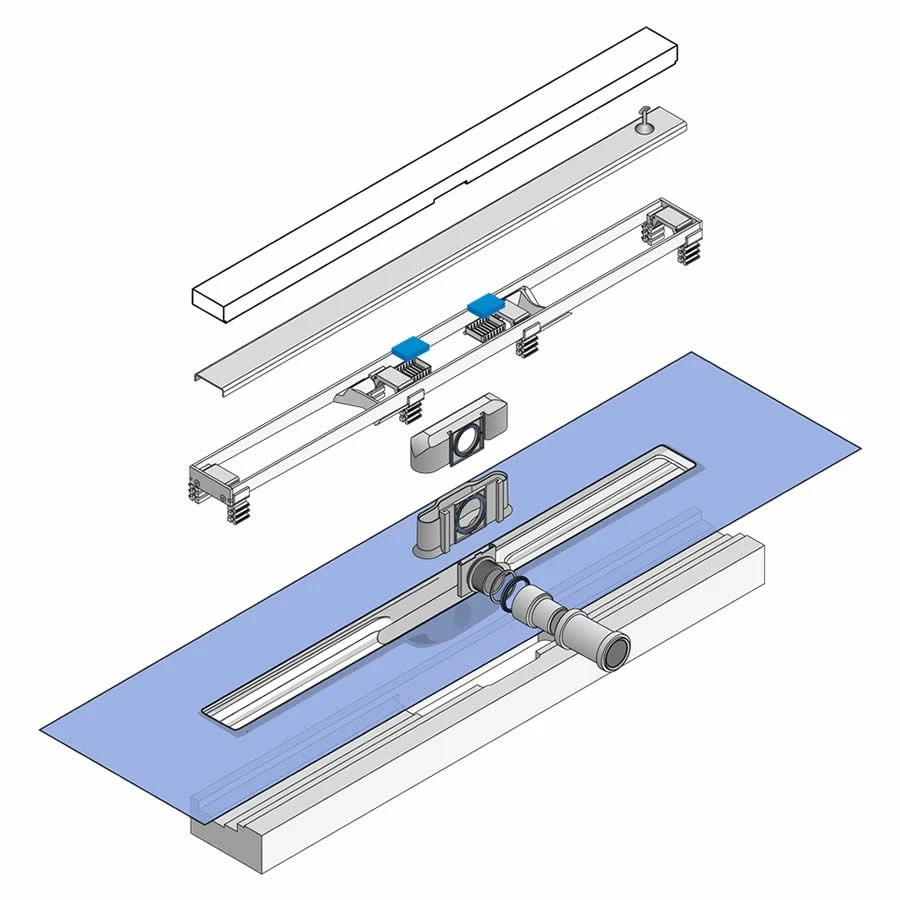

The Jackoboard J-Drain linear wet room shower floor drain channel incorporates a flange on all four sides of the J-Drain body. This is particularly useful in wooden floors and/or when a perfect seal is necessary. The tiles surrounding the drain are fixed down onto the flange creating an excellent seal. A liquid tanking kit is available as an optional extra which is painted onto the glued down flange. This extends the protected area around the drain.

The slope to the J-Drain only needs to be in one direction, and this is easily achieved with the use of Jackoboard Sloping Board.

If shower area is to be wheelchair accessible, tiles should be a minimum 50mm square.

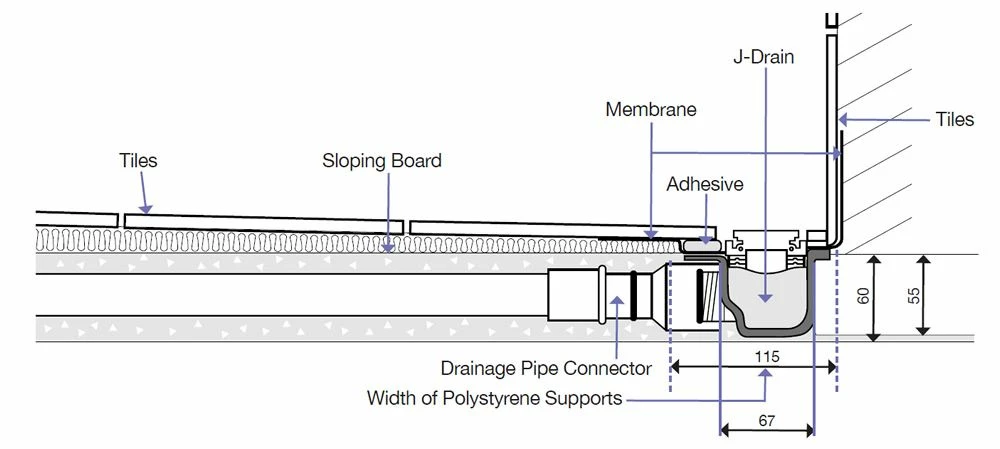

*IMPORTANT: The length and width stated are the actual size of the visible (stainless steel) drain channel, in the tiled floor finish. The actual channel body size extends by approx. 30mm at each end and 26mm on each side beneath the tiled finish, please see image below. Please consider this when planning your drain positioning.
