Contour ShowerDec Wet Room Shower Tray Floor Former – 1800 X 900mm

Copy from Here (this label will be hidden)

Add your 3 titles here (this label will be hidden)

To Here (this label will be hidden)

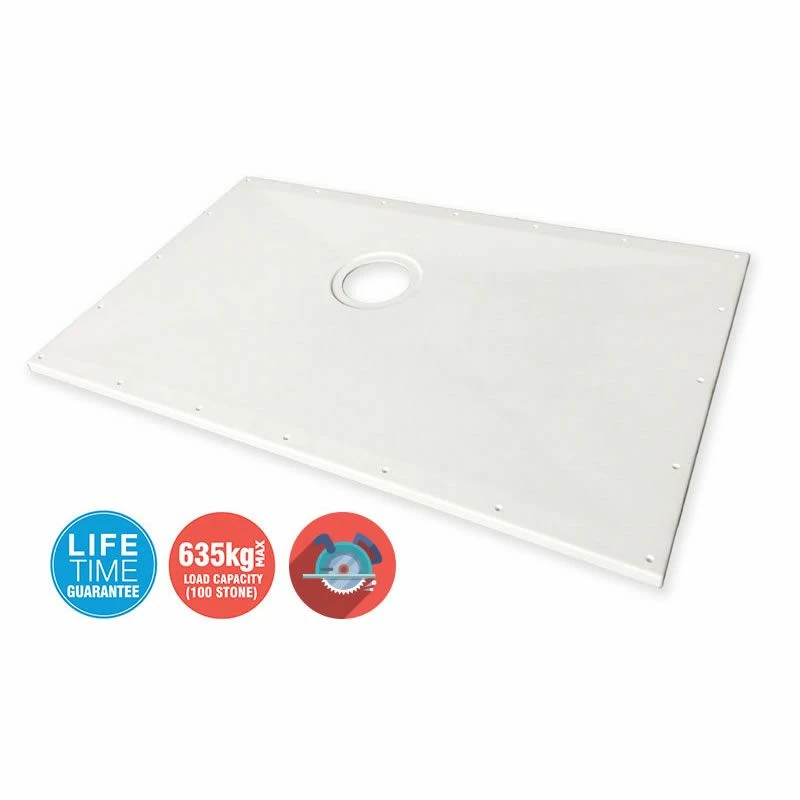

The ShowerDec from Contour is an incredibly strong wet room / walk in shower former tray that is suitable for tiled or vinyl floor finish, and can be installed in wooden or concrete sub floors. Designed for level access  wet rooms and shower areas, the ShowerDec is suitable for use with wheelchairs and similar devices, with out the need for under supporting.

The ShowerDec is tested to withstand 100 stone / 635Kg across the entire surface area to simulate a standing person. At just 24mm thick the ShowerDec is suitable for installing direct onto floor joists, the remaining floor should then be boarded to the same level.

ShowerDec floor formers are available in 12 size options and can be further cut to size using a circular saw or jigsaw. The ShowerDec features offset drain positions designed to avoid joists, trays are not handed. A standard vinyl waste and stainless steel tile and vinyl waste options are available, in addition  to a pumped outlet (pump available separately

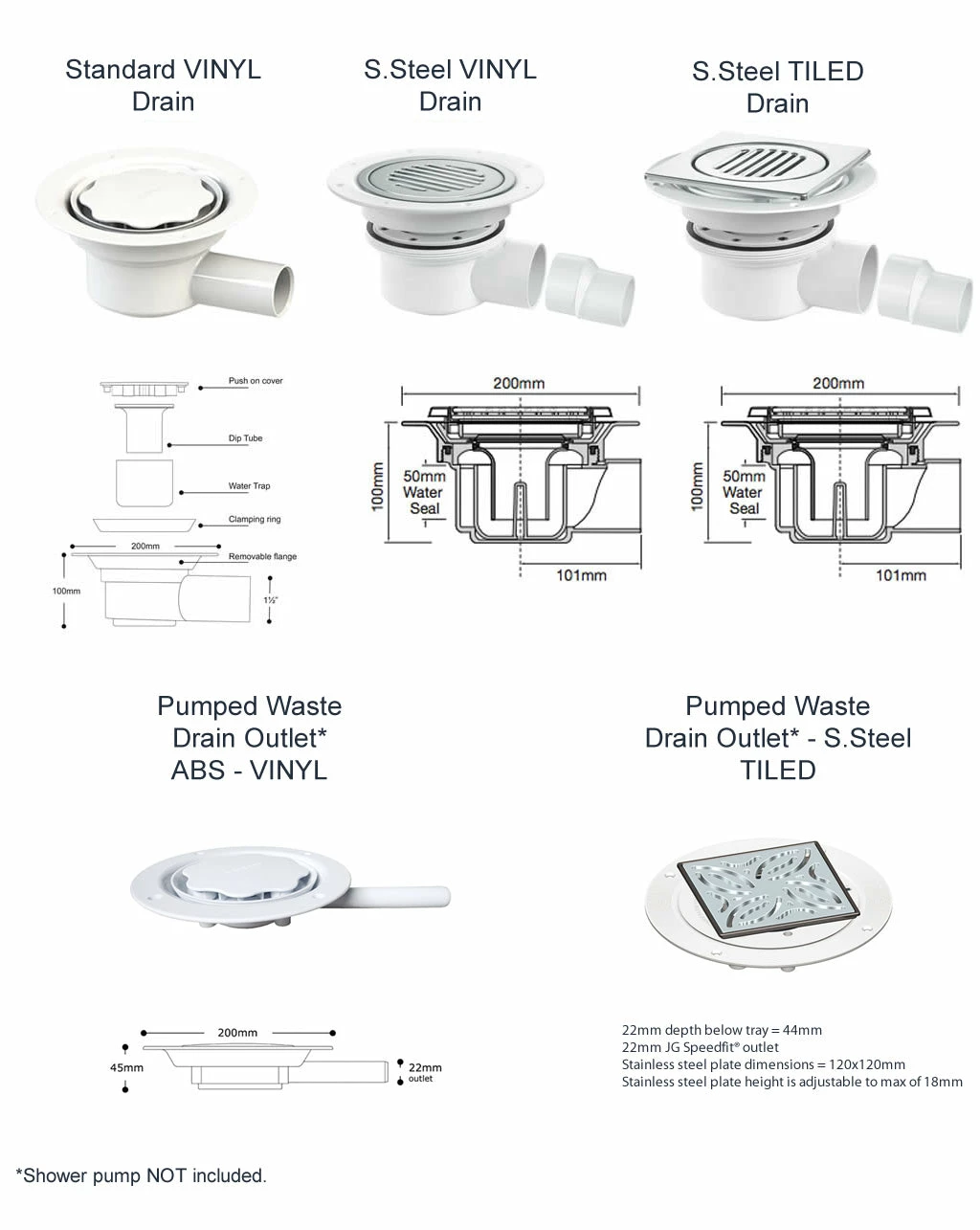

Waste Options:

The Contour Shower Dec is NOT supplied with a waste as standard. Please specific  your option when ordering.

CTW01 – ABS white VINYL drain:

• 2 part, 50mm water seal trapped waste for use with a wet room floor former.
• Bolts together for easy installation.
• Push on cover plate with removable inner cup for cleaning.
• Flow rate in excess of 26 litres per minute.
• 1½” outlet.
• Tested in accordance with EN274-2:2002
• Top access, easy to clean.
• Manufactured in white ABS, will withstand wheelchair loadings.
• 100mm deep.

TSG52 – ABS drain body with Stainless steel grate for vinyl (round) or tiled (square) floor (please specify):

• Stainless steel option for use with vinyl safety flooring (round grate) or tiled floor (square grate).
• 2 part, 50mm water seal trapped gully.
• Flow rate in excess of 40 litres per minute.
• 1½” outlet.
• Top access, easy to clean.
• Gully manufactured in white ABS, will withstand wheelchair loadings.
• 100mm deep.

CUW01 – Outlet for use with shower waste pumps (does not include pump):

• Use with a wet room floor former and flexible vinyl sheet flooring.
• To be used in conjunction with a shower waste pump.
• Push on cover plate, with 22mm outlet.
• Top access, easy to clean.
• Manufactured in white ABS, will withstand wheelchair loadings.
• Increased outlet length for easier installation.
• 45mm deep.

LB00104 – Stainless Steel PGTF Pumped Gulley Waste for TILED Floors – Pump NOT included

• 22mm depth below tray = 44mm – Low level waste option for unbreachable floors
• 22mm JG Speedfit® outlet
• Opens for easy cleaning and rodding – Ensuring easy maintenance
• Stainless steel plate dimensions = 120x120mm – Provides an easy fitting for ceramic tiles
• Stainless steel plate height is adjustable to max of 18mm – Designed to accommodate variants in ceramic tile finishes
• Lifetime Warranty  – Provides peace of mind



This Product May Be Purchasable VAT Free If you are purchasing wet room equipment and fittings (trays, grab rails and seats etc) and are registered disabled, or they are for use by a person registered as disabled, you may be eligible for VAT relief on the items. For full details and eligibility criteria please see the following page: VAT Relief on Wet Room Purchases
