Contour Falcon 30 Low Profile Anti Slip Shower Tray – 1800 X 800mm

The Contour Falcon 30 is a low profile, high performance shower tray just 30mm in height. Manufactured by Reinforced SMC (Sheet Moulding Compound) construction from a combination of resin and fibreglass to form a strong and consistent floor former, the Falcon 30 is tested to withstand 100 stone / 635Kg and is self-supporting, without the need for bedding down onto a sand & cement mix.

The tray length can be trimmed by 300mm, and comes with a unique end cap that easily screws into the cut end to conceal the cut and form a watertight seal at the same time. The Falcon 30 can be recessed into the floor by 30mm for level access.

The anti-slip surface has been rated ‘best in class’ to DIN 51097:1992 Class ‘C’, the highest achievable classification. The easy clean surface Complies to ISO 22196: 2011 international standard for the measurement of antibacterial activity for MRSA on plastic and non-porous surfaces.

Supplied complete with a 50mm water seal drain, 1½.” outlet. Flow rate in excess of 35l/m. Depth below tray only 70mm.

Product Summary:

Lowest entry, high performance tray range, just 30mm high – ‘BEST IN CLASS’, perfect for easy accessibility or a wetroom style bathroom.
At 30mm high, ideal for people who can manage a small step into the shower.
Addresses problematic spaces with the cut to size ability to suit any area where access may be restricted.
FREE ‘Cut to Length’ service available on request. Longer lead-time applies.*
Exceptionally strong & self supporting, rests unsupported on the existing bathroom floor without being bedded down onto a sand and cement mix.

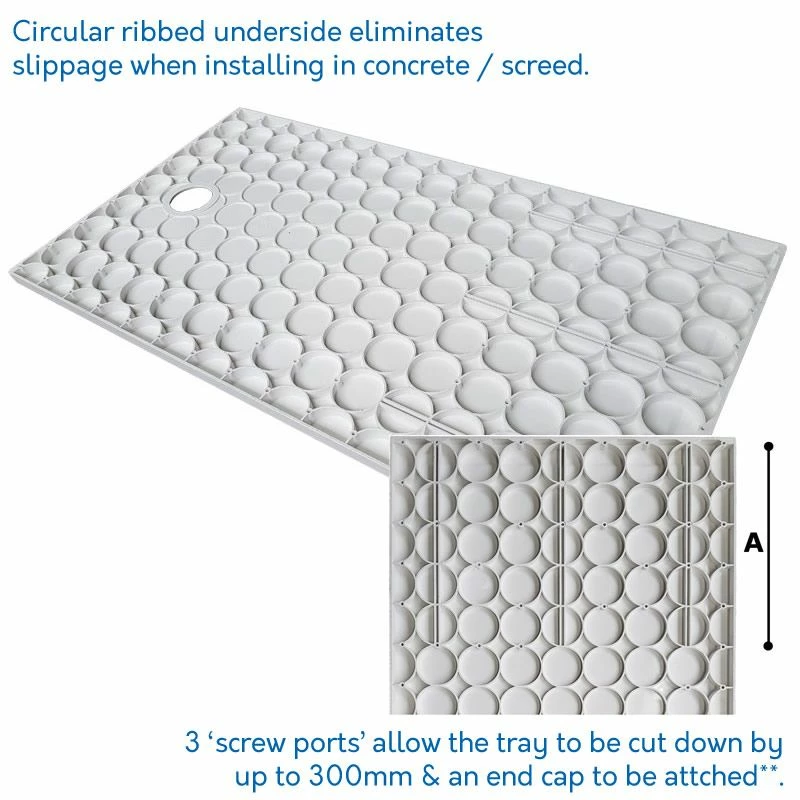

Circular ribbed underside designed for setting into a concrete or screed base & eliminates slippage when installing.
Waste positions situated to allow trap to avoid floor joists.
Unique end cap easily seals & screws in place to conceal the cut end of the tray. Not available for 900×900 & 1000×1000 trays**.
Can be recessed into the floor if required by 30mm for level access.
Helps to prevent the spread of healthcare associated infections by providing proven antibacterial protection.
Lifetime guarantee.
Trays not handed.

Technical Summary:

Manufactured using the SMC process from a combination of resin and fibreglass to form a strong and consistent floor former.
Tested to withstand 100 Stone / 635Kg across the entire surface area to simulate a standing person.

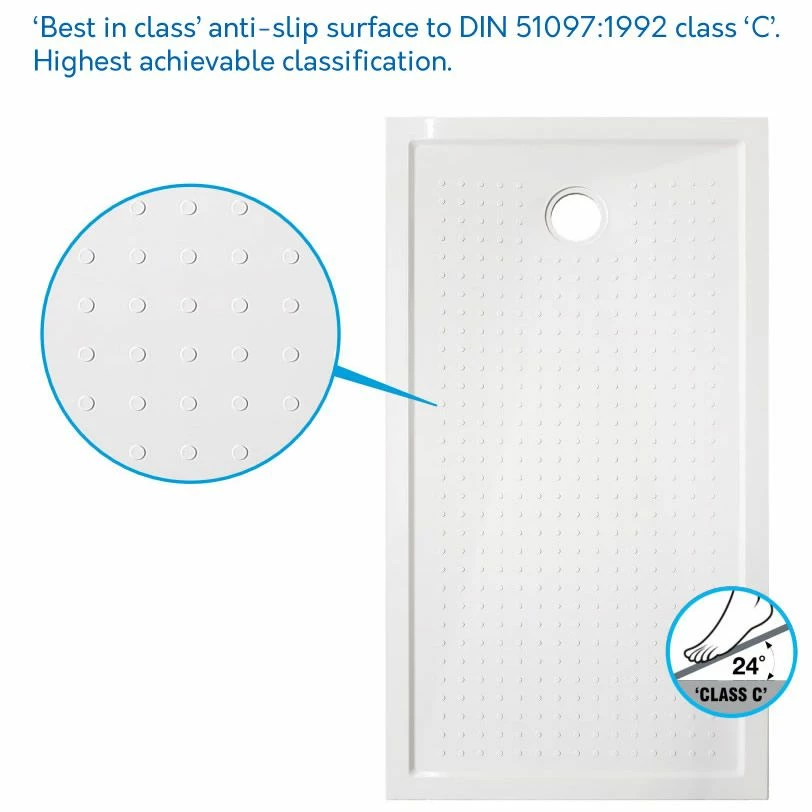

Independently tested ‘BEST IN CLASS’ anti-slip surface to DIN 51097:1992 CLASS ‘C’. The highest achievable classification that tests slip resistance.
Can be cut down by up to 300mm in length.
Complies to ISO 22196: 2011 international standard for the measurement of antibacterial activity for MRSA on plastic and non-porous surfaces.
Supplied with McAlpine ST90-CPB-P-70 gravity waste, flow rate up to 35 l/m. Depth below tray only 70mm.

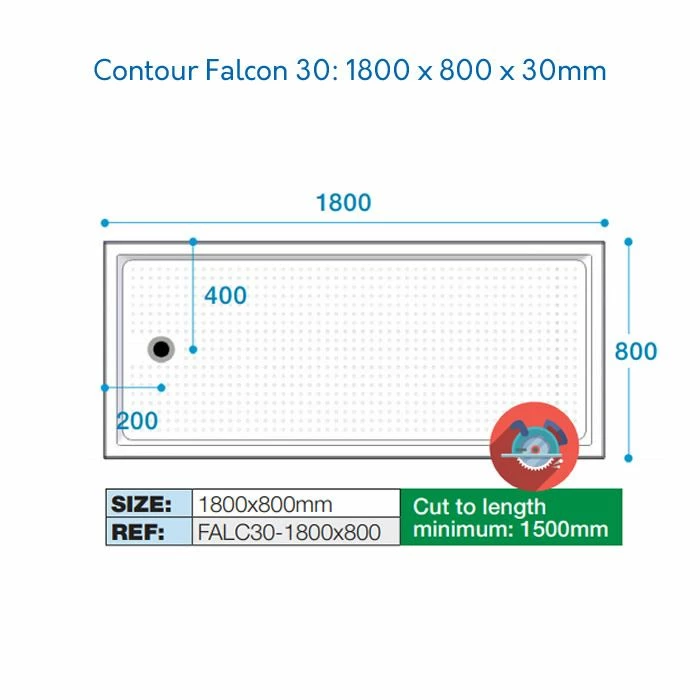

Available Sizes:

900x900mm
1000x1000mm
1300x700mm
1400x800mm
1500x700mm
1800x700mm
1800x800mm

The table below indicates how a standard size tray can be cut to length to make other common size shower trays. Contour offer a FREE ‘Cut to Length’ service available on request. Longer lead-time applies. Please call 0800 280 8008 for further details.

Downloads:
Contour Falcon 30 Product Sheet
Contour Falcon 30 Installation Instructions

*If you require a tray cutting to size, this can be cut prior to despatch, longer lead-time may apply.
**No end cap available for 900×900 or 1000x1000mm.
