AKW Onyx Low Level White Slate Effect Shower Tray: 2000 X 1000 X 26mm

The AKW Onyx slate Effect Shower tray combines sleek lines with incredible strength supporting up to 200kg / 31.5 stone as a low profile (just 26mm!) or level access tray. A contemporary, lightweight SMC shower tray, designed in-house by AKW, reflecting the latest trends in industrial design.
Contemporary slate finish helps with drainage and slip resistance
Easy installation with this lightweight tray (less than 25kg)
Made from SMC (Sheet Moulding Compound), making them exceptionally strong
Can be recessed or surface mounted

At a glance:
2000 x 1000 x 26mm

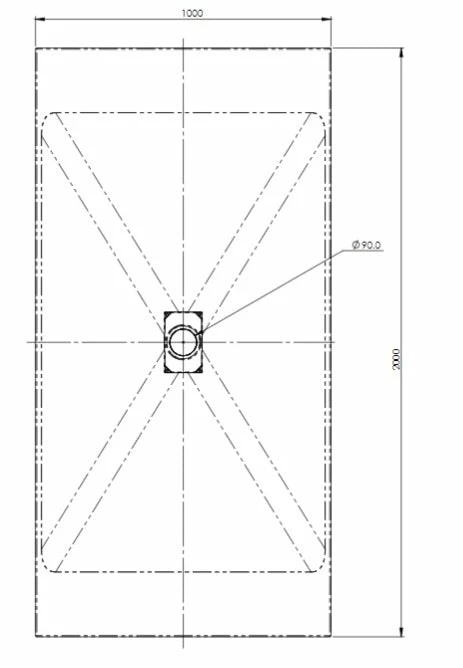

CENTRE waste position
Contemporary design, slate texture finish
Strength, made from SMC (Sheet Moulding Compound)
Slip resistant
Lifetime warranty
Easy installation, lightweight (under 25kg)
Low Profile (26mm)
Can be recessed or surface mounted
Available in white (RAL9003)
Concealed shallow depth waste (54mm under the tray) (purchased separately)
Colour and finish coordinated waste cover with slots to improve water flow
Non-deformable webbed structure ensuring excellent shock and impact resistance and easy installation
Weight load: 200kg / 31.5 Stone

Optional DW90 Dry Waste Drain:

The AKW DW90 is the only AKW waste compatible with the Onyx Shower Tray.

Shallow 48mm depth.
Non return valve preventing bad odour backflow
Trap will not dry out with sporadic use
Universal pipe fitment
Suitable for push fit pipe and solvent weld pipe (with included adaptor)
Top access for easy cleaning
High flow rate (27 l/min with 15mm head and 1m of pipe)
Meets performance requirements of British Standards, BS EN 274 Part 2:2002

Documentation:
AKW Onyx Shower Tray Specification Sheet
